Delem DA-53T Touch Screen Control

  • 4-Axis (Y1, Y2, X, R) + Automatic V-Crowning
    - 10.1" Touch Screen Control
    - Tool/Material/Product Library
    - Servo and Frequency Inverter Control
    - USB Memory Stick Interfacing

Delem DA-66T Touch Screen Control

  • 6-Axis (Y1, Y2, X, R, Z1, Z2) + Automatic V-Crowning
    - 17" Touch Screen Control
    -2D Graphical Screen Programming Mode
    - USB Memory Stick Interfacing


Delem DA-69T Touch Screen Control

  • 8-Axis (Y1, Y2, X1, X2, R1, R2) + Automatic V-Crowning
    - 17" Touch Screen Control
    - 3D and 2D Graphical Programming Mode
    -  USB Memory Stick Interfacing
    - Profile-T3D Offline Software

Delem DA-53T Brochure
Download Link

Delem DA-66T Brochure
Download Link

Delem 69T Brochure
Download Link

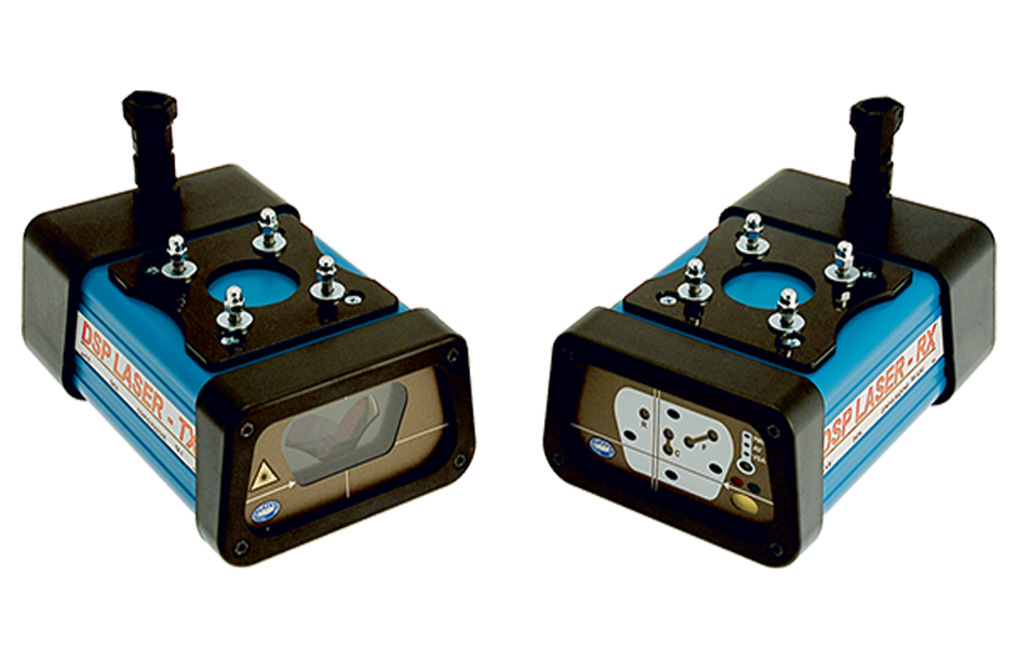

DSP Laser System

DSP Laser System

  • CLASS 1M block laser transmitter
  • The safety level reaches CAT. 4
    and SIL3
  • Conform to European CE
    certification
  • Protection grade IP65
  • The system response time is 5MS
  • With stop distance detection
    function
  • Shielding points can be manually
    adjusted and determined at will, which is convenient to set and provides
    continuous monitoring.
Press Brake Brochure Catalog Download

Press Brake Sizes available

Models Tonnage Bending Length (ft) Distance Between Columns (ft)
BDE5016 55 5.25 3.94
BDE7025 77 8.20 6.89
BDE7032 77 10.50 8.53
BDE10025 110 8.20 6.89
BDE10032 110 10.50 8.53
BDE10042 110 13.78 11.81
BDE13025 143 8.20 6.89
BDE13032 143 10.50 8.53
BDE13042 143 13.78 11.81
BDE17032 187 10.50 8.53
BDE17042 187 13.78 11.81
BDE17050 187 16.40 13.78
BDE17060 187 19.69 16.40
BDE20032 220 10.50 8.53
BDE20042 220 13.78 11.15
BDE20050 220 16.40 13.78
BDE20060 220 19.69 16.40
BDE25032 275 10.50 8.53
BDE25042 275 13.78 11.15
BDE25050 275 16.40 13.78
BDE25060 275 19.69 16.40
BDE32032 352 10.50 8.53
BDE32042 352 13.78 11.15
BDE32050 352 16.40 13.78
BDE32060 352 19.69 15.75
BDE40032 440 10.50 8.53
BDE40042 440 13.78 11.15
BDE40050 440 16.40 13.78
BDE40060 440 19.69 15.75
BDE50042 550 13.78 11.15
BDE50050 550 16.40 13.78
BDE50060 550 19.69 15.75
BDE60042 660 13.78 11.15
BDE60050 660 16.40 13.78
BDE60060 660 19.69 15.75
